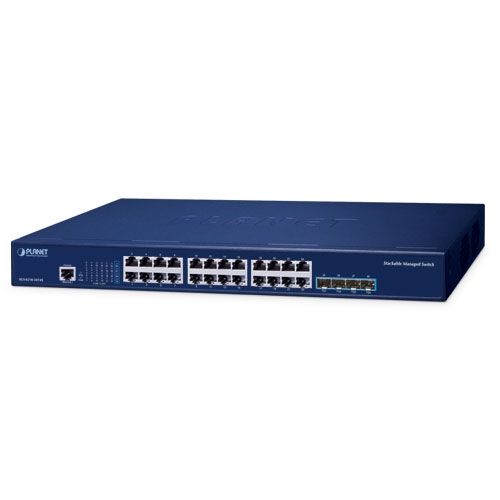

SGS-6310-24T4X

Resilient 10Gbps and Layer 3 Routing Solution for Enterprise Networking

Série Planet SGS-6310 je zbrusu nový přepínač Gigabitu spravovatelných vrstvy 3 s možností uplink 10 Gbps pro různé druhy síťových aplikací a flexibilní nasazení.TheSGS-6310-24T4X features 24 10/100/1000BASE-T RJ45 ports and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in an 1U rugged case with fanless design.

Řada SGS-6310 poskytuje výkon s vysokou hustotou,Layer 3 IPv4/IPv6 static routing,RIPaDynamické směrování OSPF capability, ERPS ring, abundantL2/L4 Spínací motor and Stohování virtuálního přepínačeTechnologie k naplnění potřeby těžkého přenosu všech aplikací.Poskytuje podnikům, poskytovatelům služeb a kampusů flexibilní kontrolu nad hustotou portů, uplinks a výkonem přepínače za cenově dostupnou cenu nad hodnotou.

Dual AC Redundant Power to Ensure Continuous Operation

The SGS-6310-24T4X is equipped with two 100~240V AC power supply units for redundant power supply installation. A redundant power system is also provided to enhance the reliability with AC power supply units. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

Vysoce výkonná kapacita ethernetu 10 Gbps

The four SFP+ ports built in the SGS-6310 series boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 80Gbps, which greatly meets high bandwidth demands in the LAN. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LRnebo1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Správa stohování centralizovaného hardwaru

Dva z portů SFP+ 10G lze nakonfigurovat tak, aby připojily několik řad SGS-6310 pro vytváření prakticky logického zařízení.Stohovatelná řada SGS-6310, vhodná pro podniky, poskytovatele služeb a telekomunikace, poskytuje vysokou hustotu portů, velkou šířku pásma uplink a vysoký výkon stohování, čímž poskytuje velkou flexibilitu pro různé požadavky na aplikace.Řada SGS-6310 se může připojit jako kroužek pro redundanci a zajišťuje, že integrita dat je zachována, i když jeden přepínač v zásobníku selže.Můžete dokonce hot-swap přepínače, aniž byste narušili síťové operace.

Redundantní prsten, rychlé zotavení pro kritické síťové aplikace

Řada SGS-6310 podporuje redundantní prstencovou technologii a obsahuje silnou a rychlou schopnost sebeobrany zabránit přerušení a externím vniknutí.Zahrnuje pokročilé ITU-TG.8032 ERPS(Přepínání ochrany prstenů Ethernet) Technologie a protokol stromu Spanning Tree (802.1S MSTP) do sítě zákazníka, aby se zvýšila spolehlivost a dočasnost systému v drsném prostředí.V určité jednoduché síti prstenců může být doba obnovy menší než 10 ms, aby se síť rychle vrátila k normálnímu provozu.

Podpora směrování vrstvy 3

The SGS-6310 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

• The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
• The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Silný multicast

The SGS-6310 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the SGS-6310 series great for any robust networking.

Full IPv6 Support

The SGS-6310-Series supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.

Robustní vrstvy 2

The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port link aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.

Excellent Layer 2 to Layer 4 Traffic Control

The SGS-6310 series is loaded with powerful traffic management and WRR features to enhance services offered by enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

Powerful Network Security

The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

Pokročilá ochrana sítě IP

Poskytuje také řada SGS-6310DHCP Snooping, IP Source Guarda Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Efektivní a bezpečné řízení

For efficient management, the SGS-6310 series is equipped with console, Web and SNMP management interfaces.

• With the built-in Web-based management interface, the SGS-6310 series offers an easy-to-use, platform-independent management and configuration facility.
• For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the SGS-6310 series offers Cisco-like command and customer doesn’t need to learn new command from these switches
• U standardního monitorového a správního softwaru nabízí připojení SNMPV3, které šifruje obsah paketu v každé relaci pro zabezpečenou vzdálenou správu.

Moreover, the SGS-6310 series offers secure remote management by supporting SSHv1/v2 and TLSv1.2 connection which encrypts the packet content at each session.

Inteligentní mechanismus diagnostiky SFP

The SGS-6310 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
