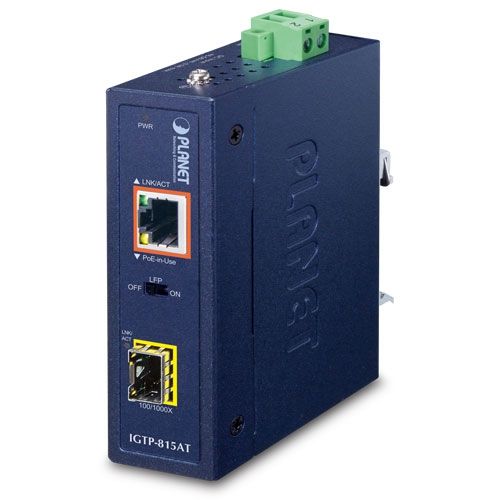

IGTP-815AT

Ruggedly Built for Harsh Environments

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber porta jeden10/100/1000BASE-T 802.3AT POE+ měděný port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 až 75 stupňů c, IGTP-815AT poskytuje spolehlivý, stabilní a kontinuální přenos dat na dlouhou vzdálenost a může být nainstalován v jakémkoli drsném prostředí, aniž by vzal v úvahu místo.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGTP-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.

IEEE 802.3at Poe Plus

Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-815AT forwards Gigabit speed Ethernet data transmission and provides a maximum of36-Watt power output over an additional 100m UTP cable to a 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.

Schopnost vlákna-optická propojení rozšiřuje rozsah nasazení sítě

The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.

Interactive Network Detection

The IGTP-815AT can support LFP(Průchod poruchy propojení) Funkce prostřednictvím vestavěného přepínače.Funkce LFP zahrnuje Link Loss Carry Forward (LLCF)aLink Loss Return (LLR):

• 　LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
• 　LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission

Both of which can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the remote network.

Environmentally Hardened Design

IGTP-815AT je speciálně navržen s odolnými komponenty a silným pouzdrem, který spolehlivě provozuje v elektricky drsných a klimaticky náročných prostředích, jako jsou podlahy rostlin nebo skříňky na řízení obrubníku.S širokým rozsahem provozní teploty -40 až 75 stupňů C je IGTP -815AT ideální pro poskytovatele služeb, kampusy a veřejné prostory k nasazení venkovních bezdrátových přístupových bodů PoE, venkovní IP kamery nebo telefony IP na jakýchkoli místech snadno a efektivně.

Robust Protection

The IGTP-815AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Flexible and Easy Installation with Limited Space

The compact sized IGTP-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.
